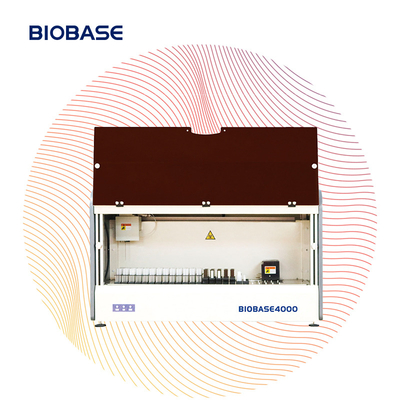

Model | BIOBASE 4000 | ||
Sample Unit | Sample Racks | Standard 600 samplepositions | |
Sample Tubes | 11.5~13mm | ||
Pipetting | 8~1000μL | ||
Dispensing system | 4aspirating-dispensing probe( X-Y-Z movement) | ||
Reagent Unit | Reagent Position | 23 reagent racks, editable | |
Pipetting Range | 8~1000μL, 1μLstepping | ||
Pipetting Precision | (100μL )CV≤0.5% | ||
DispensingTime | 3 minutesto whole96well microplates | ||
Washing Probes | Two line 8-nozzle manifolds | ||
Wash Containers | 1Cleaning fluid 15L, 1waste water 25L, 1Buffer 5L and 3 Buffer 2L, with liquid level sensor,liquid shortage and full alarm | ||
Washing Residual | <2μl | ||
Reading Unit | Reading Channels | 8 independent photometric channels, mono anddichromatic reading | |
Absorbance | 0.0~3.0 OD | ||
Spectral Range | 400-700nm | ||
Optical Filters | 2standard filters (450,630nm); 2 more on request (405nm/450nm/492nm/630nm) | ||
Reading Accuracy | ±3% from 0.2~1.0 OD, ±2% from 1.0 to1.5 OD | ||
Incubation Unit | Incubation | 8 independentincubators | |
Temperature Range | RT to 45 °C | ||
Temperature Accuracy | ±0.5°C | ||
Data Management | Software | Windows 7 | |
LIS System | Bi-direction,support HL7 protocol | ||
Results | Absorbance and results reviewable by software | ||
Printer | External optional | ||
Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 800W | |
Temperature | 10～30℃ | ||
Humidity | 30-80% | ||
Size & Weight | External Size (W*D*H) | 1343*860*1700mm | |
Net Weight | 215kg | ||
Package Size (W*D*H) | Machine:1520*970*1108mm Base Stand:1520*1020*1378mm | ||
Gross Weight | Machine:220kg Base Stand: 165kg | ||
